DEVImat 70T DEVImat 70T 504W 230V 0.5x14.4m

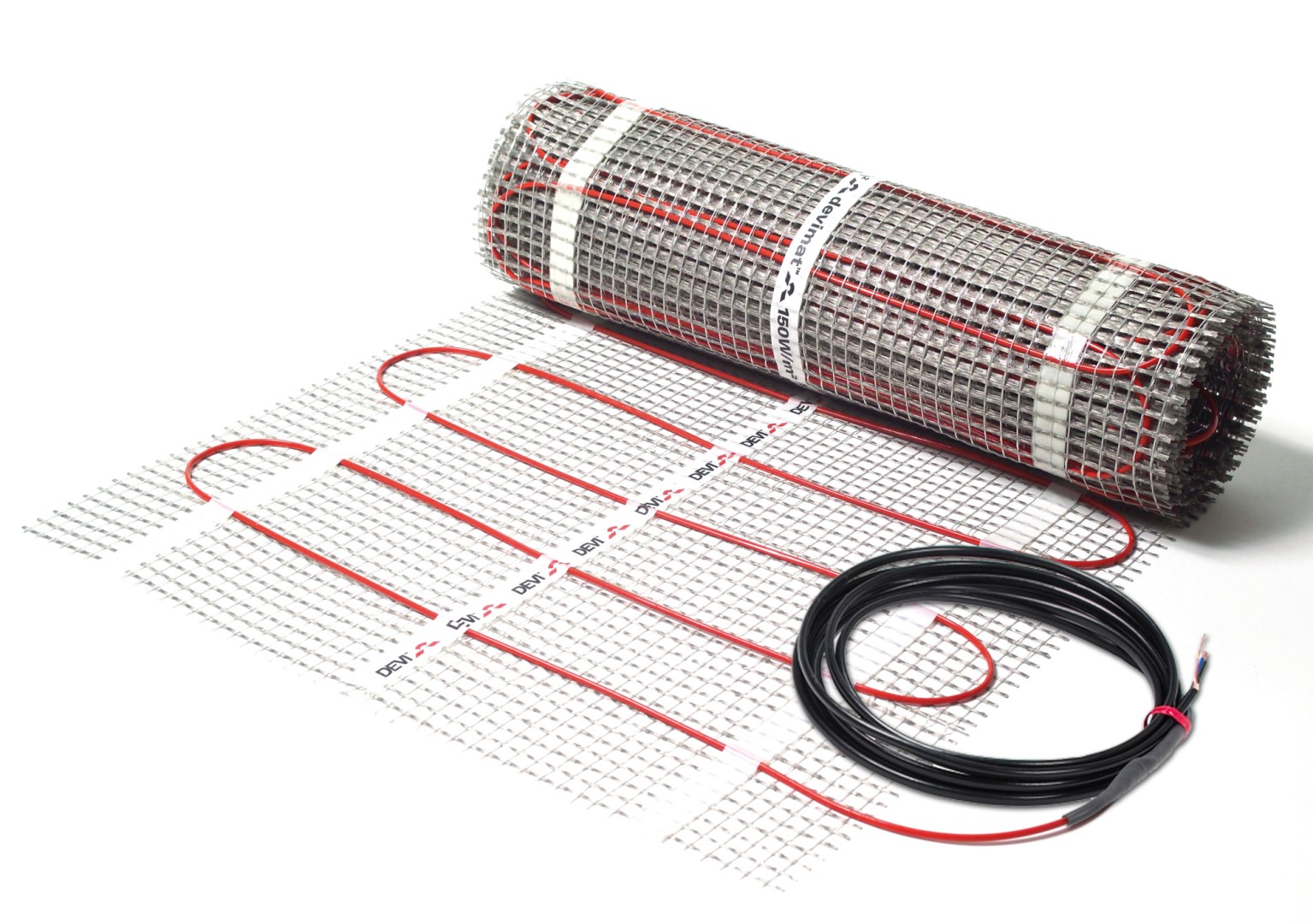

DEVImat is 360° fully screened self-adhesive all-in-one mat with FEP insulated conductors and a red PVDF outer sheath (non UV stable). The round profile, low height (only 3.5 mm) and robust construction ensures a fast, simple and safe installation perfect for renovating existing floors. The cold lead is an installation cable with solid conductors ensuring fast installation. A clearly visible connection avoids accidentally installing the heated cable in the wall. Cold lead 4m, type DTWB: 2 x 1,0mm?, Voltage 230 V, Approval: IEC 60335-2-96, Max. permissible use temperature: unpowered:120°C / powered:115°C. Heating output: 70 W/m?, Insulation: FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: - 5°C, Minimum bending diameter: 30 m2, Width 0.5 m, Mat height: 3,5 m2, Protection class: IPX7, Area 7,0 m2, 0,5 x 14,0 m, Output 490 W
